Morbark

Morbark 4600XL Tips

Write a Review

If 'Add to Cart' button is not available please call to order. (866) 227-2244

SKU:
ES140-6
Availability:
Usually ships within 2 business days
Minimum Purchase:
10 units
Shipping:
Free Shipping
  • Morbark 4600XL Tips
  • Morbark 4600XL Tips
  • Morbark 4600XL Tips
$30.86

Description

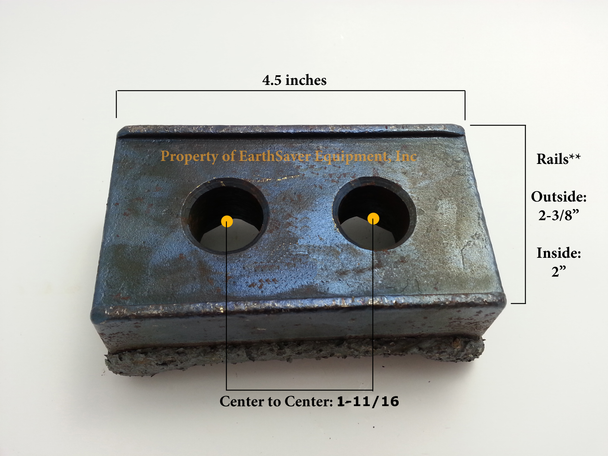

Mounting Dimensions Measurement
Outside Width
Width Inside Rails 2"
Length 4-1/2"
Bolt Center to Center 1 - 11/16"
Face Dimensions Measurement
Width  2-3/4"
Length  4-3/4"
Height
Bolt Size

***Buyers must measure their holders (hammers) to ensure that the back (or mounting)  dimensions match the hammer tip, and that there is sufficient room at the face of  the tip for clearance from the grinder screens.

***Buyers must measure their holders (hammers) to ensure that the back (or mounting)  dimensions match the hammer tip, and that there is sufficient room at the face of  the tip for clearance from the grinder screens.

Morbark PN: 40030-571

Minimum order of 10

Features:

  • 2-bolt
  • Mounting Rails: Holders (hammers) must be designed to accept hammer tips (teeth) with rails
  • Tungsten Carbide Hardfacing
  • Reversible
